- Shredlights compatible
- Heat-treated steel supports for durability
- Compatible with up to 180mm sized tires
- High-strength nylon composite mudguards
General Info

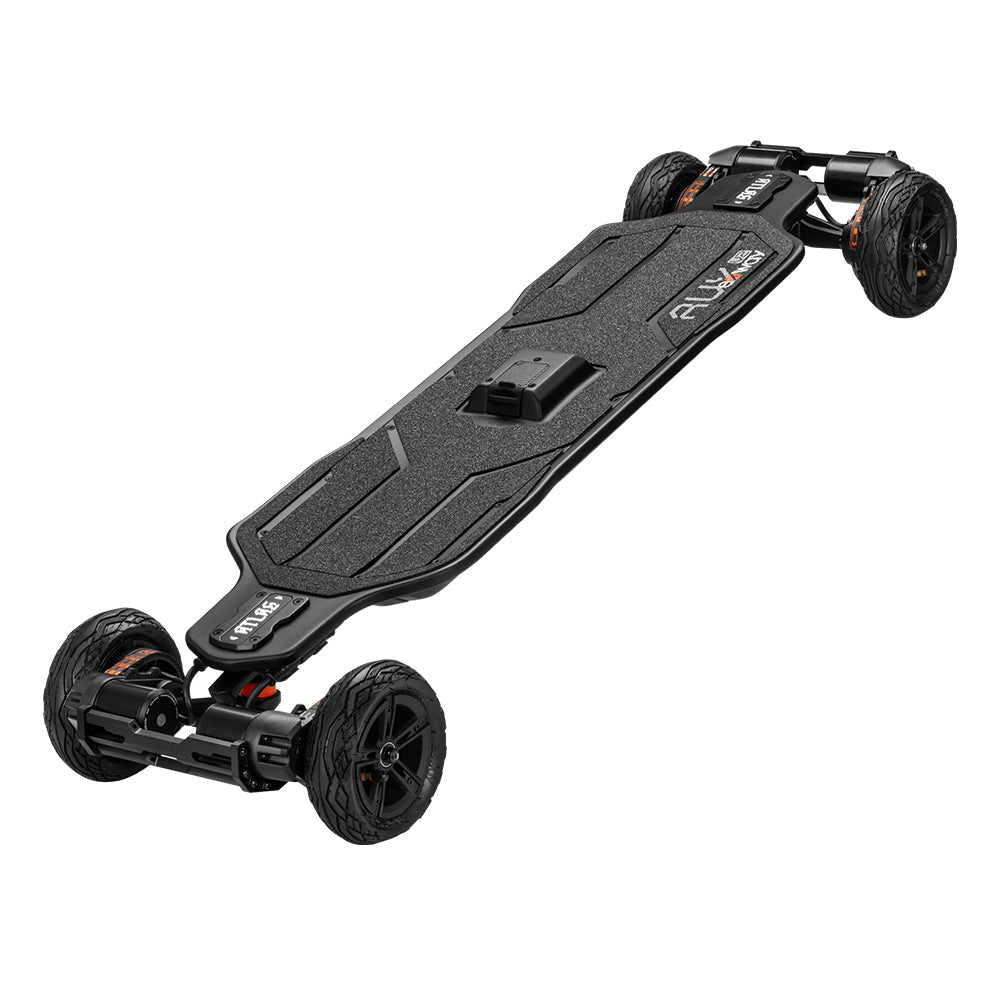

Model:Atlas Belt
Max Speed:50 KPH
Levels Assist:1.2.3.4.Turbo levels Adjustable Acceleration strength
Braking:FOC Regenerative Braking & Adjustable Braking strength
Range:Up to 30 Kilometer(AUX Pack can be installed to reach 95KM range)
Total Weight Limit:300 lbs
Ideal Use:All-Terrain
Folding:No
Rider :Suitable for ages 15 and up
Weight:11.5 KG
Safety Certified:Comply with UL2272, CE standards
SIZE: 119*31.2*16cm / 46.9*12.2*6.2inch (Max Size,L*W*H)
DECK: Carbon Fiber
TRUCKS: Trist 9.5" DKP (Forging + CNC Precision Machined) (Replaceable RKP)
WHEELS: 160*50mm High quality rubber wheels (any skateboard wheels from 85-200mm)
Hubs:High precision plastic hub (Replaceable aluminum CNC Hub)
MOTORS: 3024W power rated 4240*4 Custom Brushless Sensored Motors
DRIVE:Belt(BELT RATIO:3.7)
ESC: Custom 12S 50.4V ESC2.0 - 2.4G Wireless & Bluetooth
BATTERY:518Wh,12S3P 50.4V 120A Smart BMS
BATTERY PACK: AUX Pack can be installed
CHARGER: 4A Charger (1050W Quick Charger)
CHARGING TIME: 518WH 3.3H (1050W 30min)
REMOTE: Smart Remote R2
APP SUPPORTED:Yes
Mud Guards:Yes
Miscellaneous:Check
Technical Overview
Atlas is factory set to 20KM/H. When the rider reaches 10KM, the 1.2.3.4.Turbo gears are automatically unlocked, and it has a tank U-turn function, without bending over to change direction. The maximum speed in Turbo mode can reach 50KM/H. If you want to ride in an area where stepping on the accelerator is prohibited, Atlas can also be driven without turning on the power. Exwayboard meets the IP55 waterproof standard. IP55 means that your skateboard can withstand water from the road, and splashes or raindrops on wet roads will not cause damage to it. Your skateboard is not suitable for long-term rain, immersion in water or pressurized spray. Do not use a high-pressure cleaner or sprayer to clean the skateboard.
*The maximum driving distance is determined at a speed of 25km/H on flat terrain, and the rider weighs 75KG (160 pounds).
All electric skateboards are produced in batches and then shipped to our regional warehouses.
After arriving at the warehouse, US orders will be received within 3-7 business days, and European orders will be received within 3-7 business days.
If our regional warehouse does not have stock, it will be considered a bulk reservation. Large quantities of electric skateboards are shipped to US and European warehouses on the way.
We will confirm the shipping address and delivery date with the customer within 24 hours after receiving the order.
1 * Atlas
1 * Remote Bag ( include remote , charging cord, etc.)
1 * Tool Bag(Includes all tools to disassemble the boards)
1 * User Manual
1 * 4A Charger
1 * Exquisite bracelet
Atlas Elite Series Bundle
What’s Included:
• Rexus Protector ×1
• Skate Handle ×2
• Off-Road Mud Guard Combo ×2
• Inner Tires ×2
• Skateboard Pads ×1
• ACE X-Pack ×1
• AUX Pack ×1
• SC1050 Flash Charger ×1
• 165mm CNC Semi-Slick Race Tires ×1
• Footstop V2 ×2
• ACE Off-Road Grip Tape ×1
• ShredLights (Headlights + Taillights) ×1
• Mini Air Pump ×1
• Predator DH6 Helmet ×1
• Waterproof Jacket ×1
Why This Bundle?
A heartfelt thank you to Xan, our loyal UK rider, for inspiring this bundle. Each item is carefully curated based on the recommendations of 10 elite riders, each with over 50,000 kilometers of riding experience.
This bundle is more than just gear—it’s about creating a seamless and exceptional riding experience. From optimizing your board’s performance to supporting your daily rides and helping you explore new terrains, the Atlas Elite Series Bundle is your ultimate all-in-one package.
Best of All: Purchasing this bundle gives you an incredible 80% discount compared to buying each item individually. From the moment you open it, this bundle is designed to deliver maximum value, functionality, and excitement for every rider.
Exway AUX-Paket
The Exway AUX Pack is a cutting-edge storage and power solution designed to elevate your electric skateboarding experience, offering 55 km of additional range. Say goodbye to range anxiety and explore further with ease.
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Take your electric skateboarding experience to the next level with the Exway AUX Pack—more range, more freedom, and seamless integration.
SC1050 Flash Charger
The Exway SC 1050 is engineered for speed and convenience. No more waiting around—just power up and go.
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
🚀 Experience faster, smarter charging. More time on the road, less time waiting.
CST ACE Mountain Tire
Experience superior comfort and performance with the Exway All-Terrain Off-Road Tires, designed to tackle both paved roads and rugged trails. Whether you're cruising on city streets or venturing off-road, these tires are engineered to provide optimal traction, durability, and control, making your ride smooth and fearless.
No matter where the journey takes you, the Exway All-Terrain Off-Road Tires are engineered to handle any road condition with ease. Maximize your riding experience with enhanced durability, traction, and comfort on every terrain.
Exway160 165 175 Alle Spezialreifen
Each tire size offers unique benefits depending on your riding style and terrain needs. Whether you prioritize speed, maneuverability, or maximum stability, Exway provides a robust option suited to your preferences.

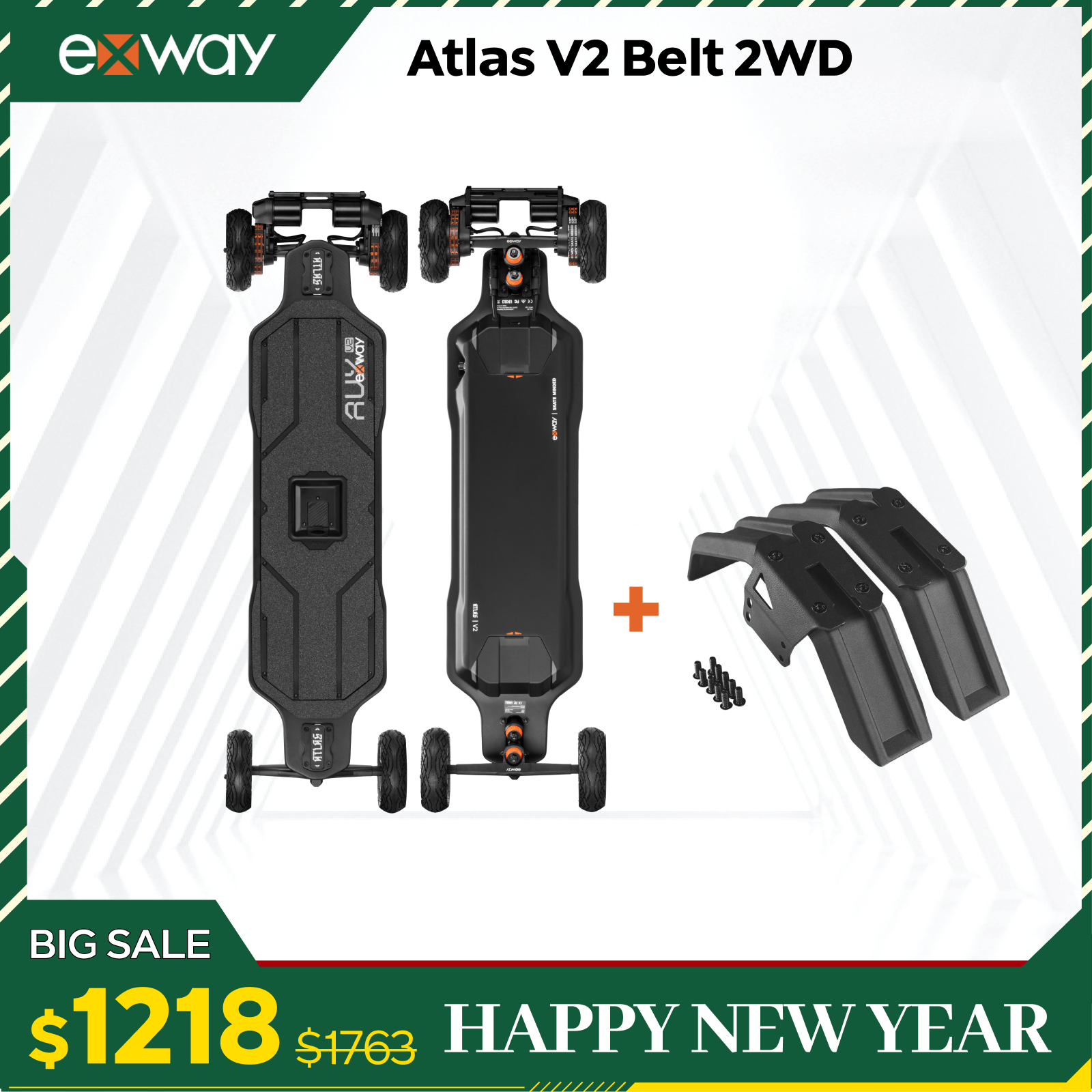

Exway Offroad-Kotflügel für die Atlas-Serie
Wichtigste Funktionen
Material: Hochfestes, dehnbares Nylon + wärmebehandelter, verstärkter Stahl
Oberflächenverfahren: Schwarzverchromung
Feste Halterungen: Vollständig kompatibel mit den Leuchten der Serien Shredlights SL-200 und Shredlights SL-1000.
Option
① Atlas 2WD-Paket:
Atlas Offroad-Schmutzfänger x4
Atlas Vorderachse feste Halterung x2
Atlas hintere LKW-Festhalterung x2
Kotflügelhalterung x 4
M4 Kontermutter ×24
M4*12 Senkkopfschrauben x16
M4*12 Pflaumenscheibenkopfschrauben x8
M4*14 Pflaumenscheibenkopfschrauben x2
M4*8 Pflaumenscheibenkopfschrauben x8
② Atlas 4WD-Paket:
Atlas Offroad-Schmutzfänger x4
Atlas hintere LKW-Festhalterung x4
Kotflügelhalterung x4
M4 Kontermutter x24
M4*12 Senkkopfschrauben x16
M4*12 Pflaumenscheibenkopfschrauben x8
M4*8 Pflaumenscheibenkopfschrauben x8
Tipps zur Verwendung
1. Dieses Zubehör ist mit der Atlas-Reihe von Exway kompatibel. Es wurde in Zusammenarbeit von Exway und ShredLights entwickelt.
2. Klicken Sie hier, um zu erfahren, wie Sie den Fender für Ihren Atlas installieren
So installieren Sie den Fender für Ihren Atlas (exwayboard.com)
Exway Universal-Skate-Griff
Top-Funktionen : hohe Festigkeit, langlebig, schön und exquisit
Material: Eisen
Oberflächenverfahren: Schwarzverchromung
Packliste : Exway Universal Skate Griff x1
Tipps zur Verwendung : Dieser Universal-Skate-Griff ist mit den Boards der Atlas-Serie, X-Serie und Flex-Serie kompatibel.
ACE RKP Turck
The Exway ACE RKP Trist is a high-performance skateboard truck system that offers enhanced stability, control, and turning precision for electric skateboard riders, particularly on challenging terrains. RKP stands for "Reverse Kingpin," a truck design known for improved carving and tighter turns, making it ideal for both urban and off-road riding.
The Exway ACE RKP Trist truck system is tailored for riders looking to maximize both their speed and turning capabilities without compromising stability, making it a versatile choice for a wide range of terrains.
Shredlights
Ein kompaktes Beleuchtungsset mit 300 Lumen Scheinwerferleistung, damit Sie bis zu 10 m weit sehen und aus über 2 km Entfernung gesehen werden können!
Exway Mini-Luftpumpe
The Exway Mini Air Pump is the perfect tool for riders needing to maintain optimal tire pressure on electric skateboards and other inflatable gear. With its compact size and powerful performance, this lightweight pump ensures that you can easily make tire adjustments on the go, ensuring a smooth and safe ride every time.
Fast Inflation
⚡ Efficient Inflation: The Exway Mini Air Pump can continuously inflate for up to 2 minutes, with just 5 seconds needed to fully inflate Atlas tires. Whether you need to top off or fully inflate, you'll be back on the road in no time.
Compact and Lightweight Design
🎒 Portable and Convenient: Designed for easy portability, the pump can easily fit in your backpack or be carried with you for quick tire adjustments. It's the perfect tool for fast pressure adjustments when you're out and about.
Versatile Compatibility
🚚 Not Just for Skateboards: The Exway Mini Air Pump works with a wide range of inflatable items, including Atlas tires, bicycle tires, and even large truck tires. Note that it cannot be directly connected to your skateboard, but you can use an adapter for efficient inflation.
Easy to Use
🛠️ User-Friendly: The pump features an intuitive interface, making it easy for riders of all experience levels to use. Whether you're a beginner or seasoned rider, you'll be able to inflate quickly and efficiently.
Durable Construction
🛠️ Built to Last: Crafted from high-quality materials, the Exway Mini Air Pump is designed to withstand frequent use, ensuring it remains reliable for all your tire inflation needs.
Convenient Charging
🔋 USB Rechargeable: The pump comes with a USB charging port, allowing you to charge it quickly before your ride, ensuring it's always ready when you need it. No more worrying about running low on battery during your ride.
The Exway Mini Air Pump is not only suitable for electric skateboards but also works with large truck tires, bicycles, and other inflatable equipment, making it a versatile and reliable inflation companion.
Stay prepared, ride safe, and inflate easily—take the Exway Mini Air Pump with you and enjoy every ride with freedom!
Exway Fußstopper v2
Verbesserte Fußpositionierung Verbesserte Kontrolle Erhöhtes Vertrauen Leistungssteigerung
Abnehmbarer Exway ACE X-Pack Pro Skate-Rucksack der 2. Generation
Please note that the default is "Option 1". If you need another 2 options, please click
ACE X-Pack
The Exway ACE X-Pack Detachable 2nd Gen Pro Skate Backpack is designed for active riders who need a versatile and functional carrying solution for their electric skateboarding adventures. This innovative backpack combines style, practicality, and durability, making it the perfect companion for both urban commutes and outdoor excursions.
The Exway ACE X-Pack Detachable 2nd Gen Pro Skate Backpack is the ultimate accessory for skateboarders who value convenience, style, and functionality, making it easier to carry everything you need for your next adventure. Whether you're commuting to work or heading out for a weekend ride, this backpack has you covered.
12S Smart and Modular Battery System
Carbon fiber housing shields the cells and electronics from the environment.
Designed to be user-replaceable.
ALL THE POWER YOU NEED
Exway's power ratings are based on the entire systems' capabilities, free of cherry picked stats considered in a vacuum.
- 2WD: 2000W peak power
- 4WD: 3000W peak power
CARBON FIBER UNIBODY
Sleek and stealthy with the delicate electronics embedded within the high-strength carbon deck.
MAKE IT YOURS
Ride the way you want to with the wide range of custom-made accessories such as mudguards, bashguards, handles, etc.

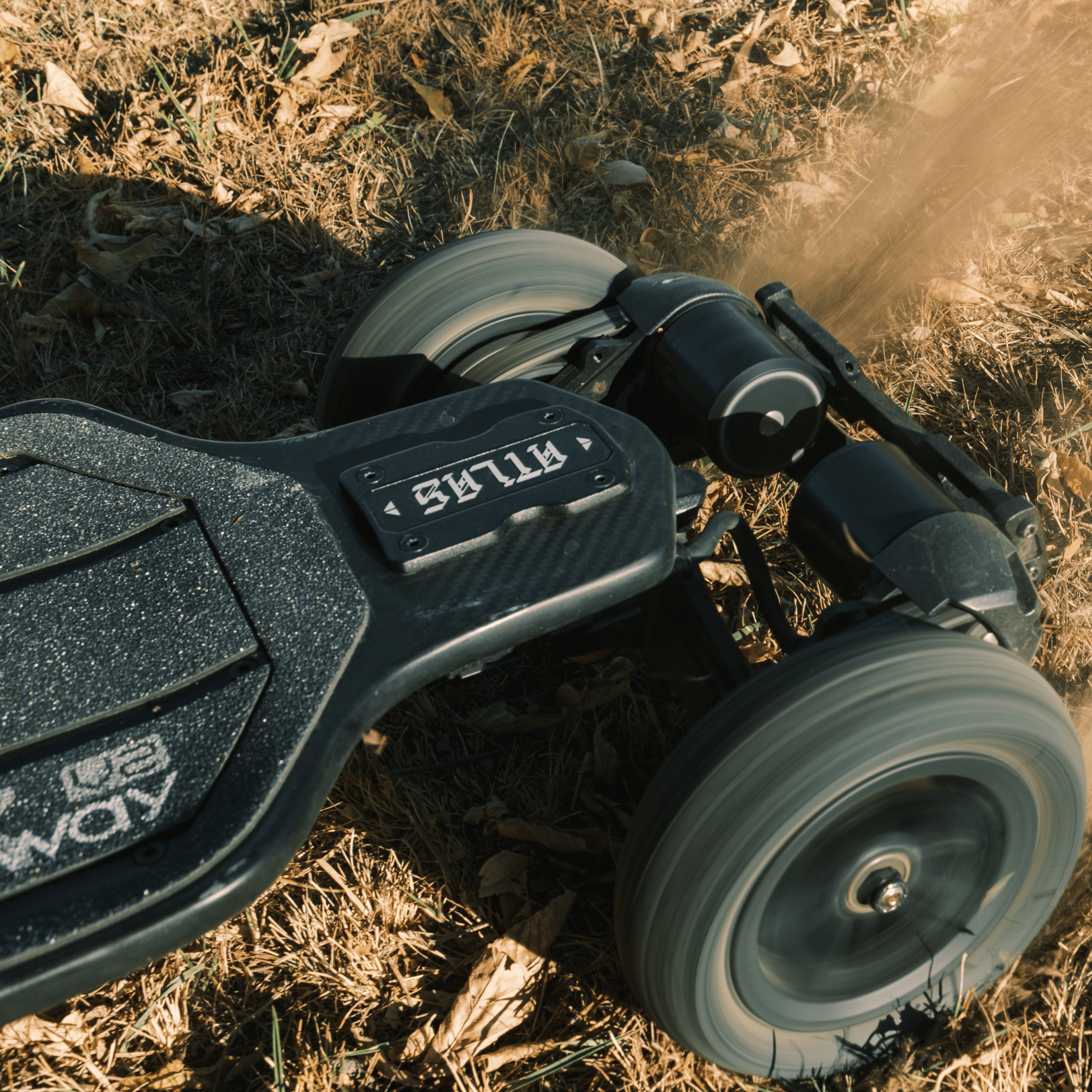

MODULAR DRIVETRAIN
Easily swap between 2WD/4WD and soon, between Belt/Direct drives.
A wide selection of pulleys available for wheel compatibility.
SLEEK AND QUICK
160x50mm in size, these lightly treaded wheels are best suited for day-to-day use, light trails and damp conditions.
FAT AND KNOBBY
175x50mm in size, these monstrous wheels roll over harsh terrain without skipping a beat. Best suited for dirt trails, sand, and other rough terrain.
JUST THE HUB
Already have a favorite tire? Bare hubs are available and will fit most 125-200mm tires.
A WAY TO RIDE FOR EVERYONE

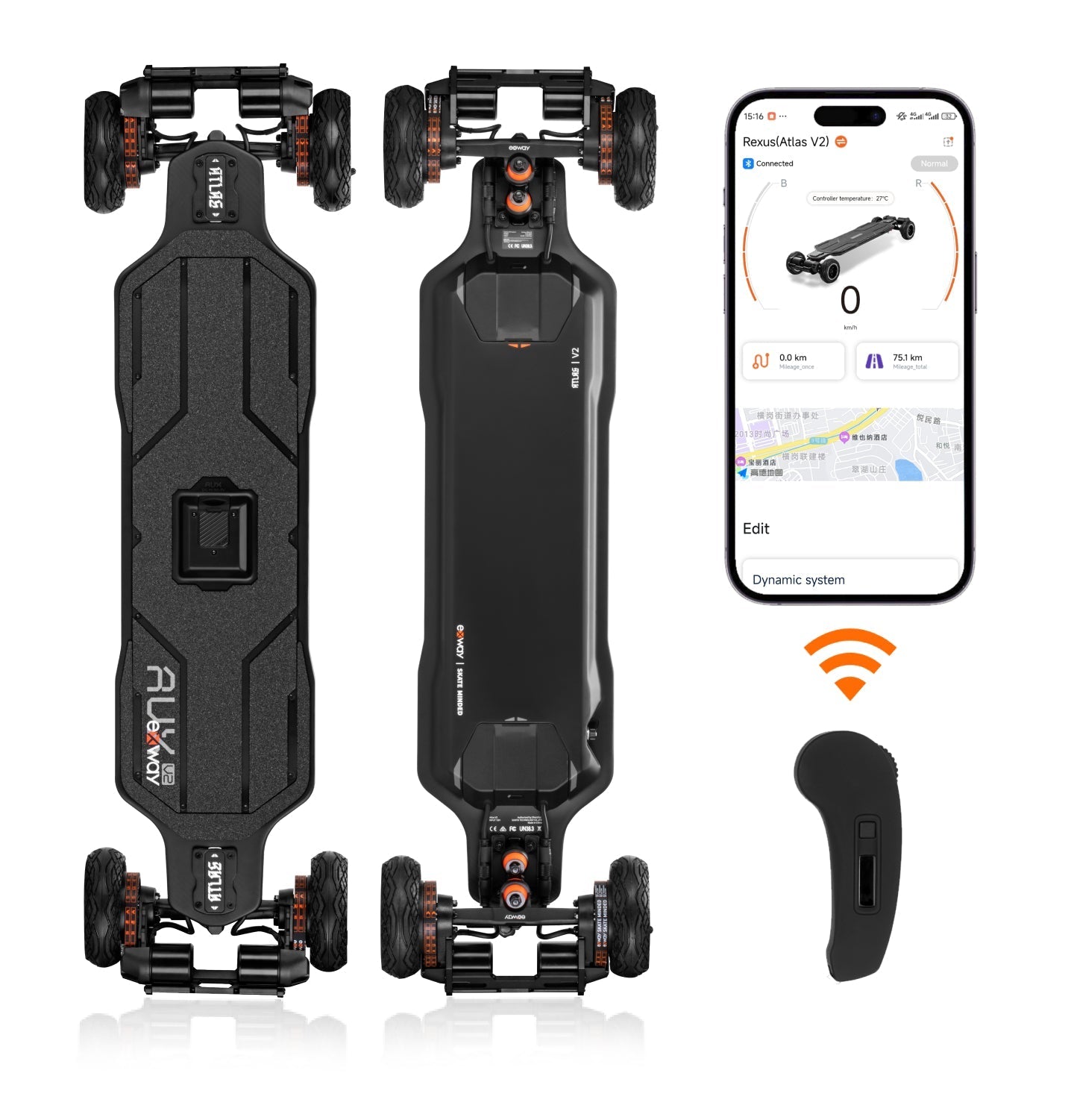

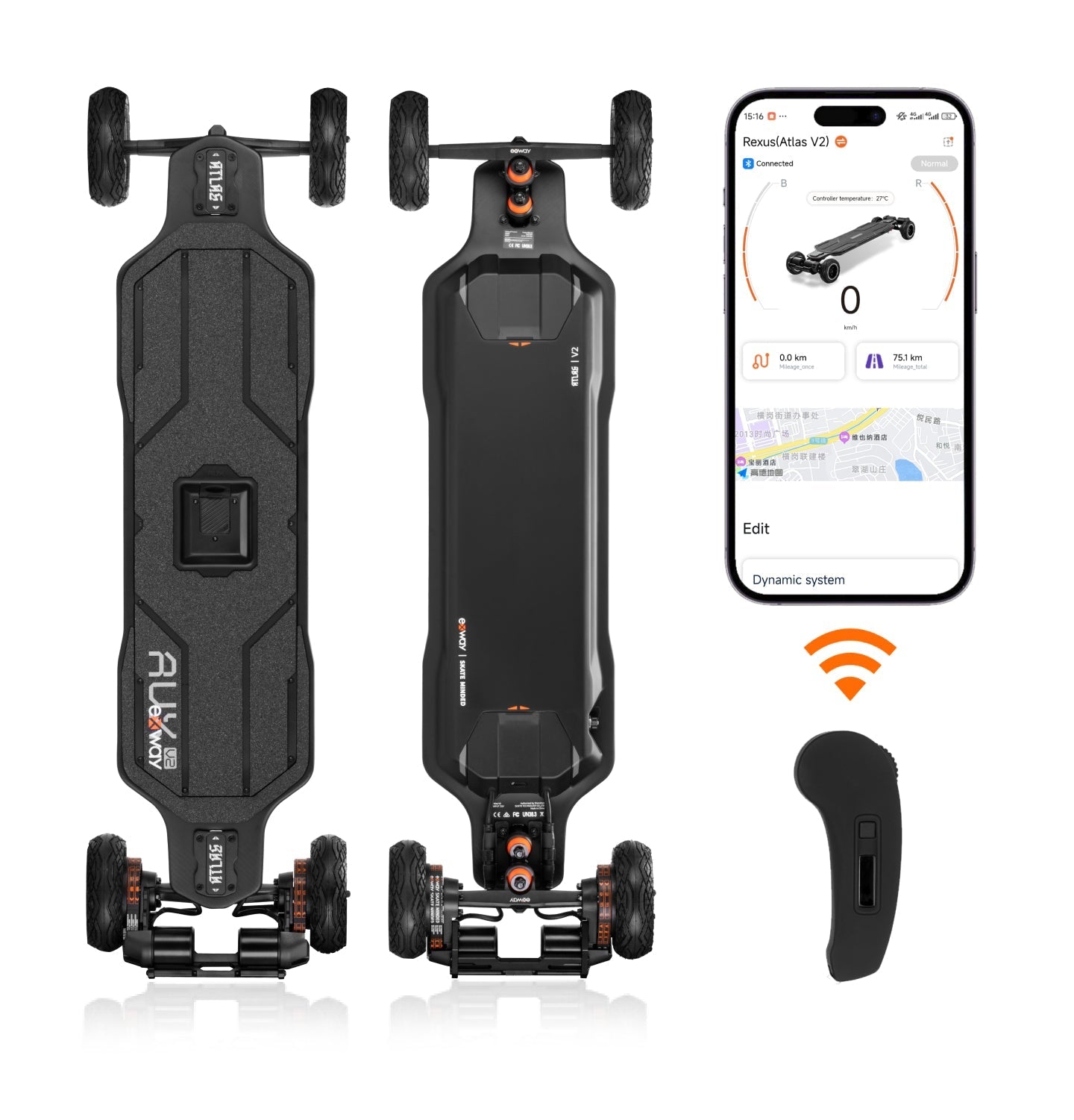

Tank mode, free mode, turbo mode, there's a way to ride for everyone. Choose yours with the Atlas compatible Exway app.
RIDE IT YOUR WAY
Tune the ride characteristics of your board the way you like it.
SWITCH BETWEEN 2WD/4WD*
Need more traction on the trails? Or maybe you're looking to conserve some power on smoother roads. Easily swap between 2WD/4WD using the remote.
*Only applicable for 4WD boards
The water-resistance of the skateboard is IP55, which is resistant to splashes and dust under normal conditions, but if you ride in a puddle or where the water level is high, or even immerse your skateboard in water, the water is likely to enter the electrical parts and damage the part.
Please do not ride in the rain or any wet ground with water, this will cause a high risk of water damage and may cause the motor bearings to rust and make noise.
