Exway160 165 175 All Specialty Tires
Used together
Precision pulleys for Atlas
Precision pulleys for Atlas
Precision CNC-Cut Pulley
Crafted from high-quality aluminum alloy and CNC-machined for perfect precision, this pulley system significantly enhances the dynamic balance of your wheels. The result? Superior control and a smoother, more comfortable gliding experience.
By investing in CNC manufacturing, we've prioritized control precision, ensuring the best possible performance for your Exway skateboard. Whether you're carving through city streets or tackling rough terrain, these pulleys offer unparalleled reliability and smoothness.
As for colors, if you're asking about color preferences for the pulleys, I think a sleek black or matte aluminum would be ideal to match most Exway board aesthetics, but orange could offer a striking contrast, especially for the Atlas series!
What do you think—do you want to focus on one color or offer multiple options?
Belt for Boards
Belt for Boards
Package Contents:
15mm belt × 2 (select above)
INSTRUCTIONS:
1. For Exway skateboards' 5M drive gear only.
2. Please rotate the wheel and press down hard when installing
3. The belt tension can be adjusted by slightly changing the motor mounting position.
ABEC Core Pulley Configurations
28T / 36T / 44T / 56T / 66T
Wave, Flex, X1 series with Riot Belt Drive:
28T pulleys require 230mm belts
36T pulleys require 255mm belts
44T pulleys require 280mm belts
Atlas 2WD/4WD ：
28T pulleys require 255mm belts
36T pulleys require 280mm belts
44T pulleys require 300mm belts
56T pulleys require 340mm belts
66T pulleys require 375mm belts
Atlas Pro 2WD/4WD：
28T pulleys require 280mm belts
36T pulleys require 300mm belts
44T pulleys require 320mm belts
56T pulleys require 360mm belts
66T pulleys require 375mm belts
It is recommended that you read the Wheels/Pulleys/Belts & Accessory Compatibility Guide before purchasing
With high performance boards, the type of wheels used can present as a bottleneck to the rest of the system, such as in not having enough traction to handle large torquey motors. For such boards, including the Atlas Pro, we’ve got your back with the Venator competition tires.
With high performance boards, the type of wheels used can present as a bottleneck to the rest of the system, such as in not having enough traction to handle large torquey motors. For such boards, including the Atlas Pro, we’ve got your back with the Venator competition tires.

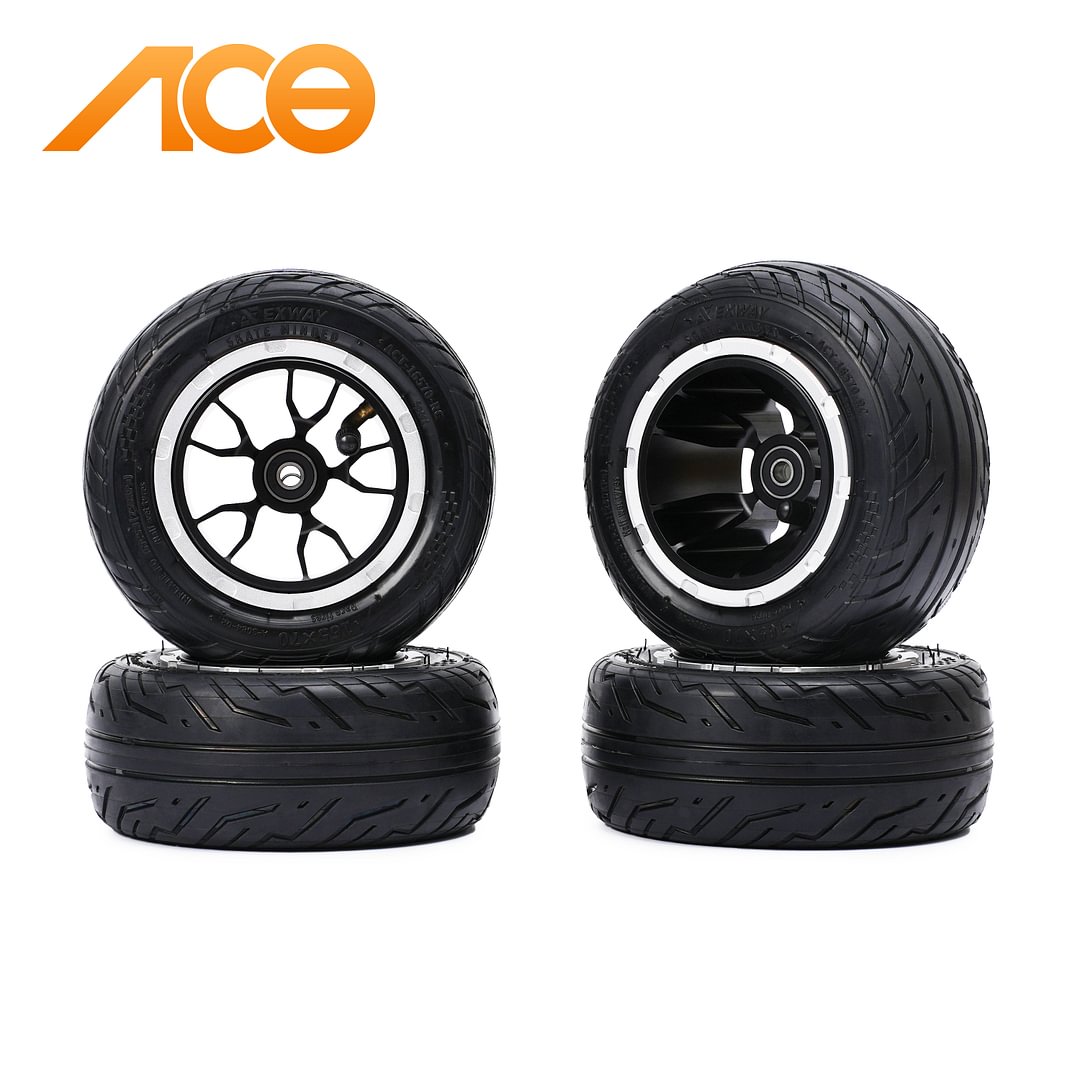

At 165x70mm, these are the widest and grippiest pneumatic wheels made for the Atlas Pro. At 36 PSI, the Venator Race Tires reach their maximum grip potential, keeping you and the board firmly planted to the ground in any situation.
At 165x70mm, these are the widest and grippiest pneumatic wheels made for the Atlas Pro. At 36 PSI, the Venator Race Tires reach their maximum grip potential, keeping you and the board firmly planted to the ground in any situation.
Inspired by the design of F1 semi-slick tires, the Venators are capable of dispersing impressive quantities of water without sacrificing dry grip thanks to water shedding channels and super sticky rubber compound.
Inspired by the design of F1 semi-slick tires, the Venators are capable of dispersing impressive quantities of water without sacrificing dry grip thanks to water shedding channels and super sticky rubber compound.
Intense sessions on the racetracks put wheels through long periods of stress and fatigue, which usually results in a very high rate of wear. The Venator Race Tires are made extra thick with a long-wearing rubber compound to combat the high wear rate and increase durability.
Intense sessions on the racetracks put wheels through long periods of stress and fatigue, which usually results in a very high rate of wear. The Venator Race Tires are made extra thick with a long-wearing rubber compound to combat the high wear rate and increase durability.
The Venator Race Wheels come with a wider version of the high-performance Precision Hubs that pair extremely well with wider profile tires. Wider wheels benefit from a larger contact patch with the ground and less tire deformation, both vital to maximizing traction.
The Venator Race Wheels come with a wider version of the high-performance Precision Hubs that pair extremely well with wider profile tires. Wider wheels benefit from a larger contact patch with the ground and less tire deformation, both vital to maximizing traction.
Diameter: 165mm
Width: 70mm
Weight: 0.8kg/1.8lbs per wheel
Recommended Pulley Size: 56T Precision pulleys
Required Belt Length: 340 for Atlas, 360 for Atlas Pro
Compatible Boards: Atlas, Atlas Pro.
Shock Absorption: ★★★★★
Wet Grip: ★★★★★
Dry Grip: ★★★★★★
All-Terrain: ★★★★☆
Range: ★
About Endurance
At the recommended tire pressure of 36kpa with an 180lbs (80kg) rider, expect up to a 50% reduction in range compared to Exway’s 160mm AT wheels due to the increased contact patch and rolling resistance. For daily usage, 50 PSI is ideal for range, netting about 75% the endurance of the 160mm wheels.
Diameter: 165mm
Width: 70mm
Weight: 0.8kg/1.8lbs per wheel
Recommended Pulley Size: 56T Precision pulleys
Required Belt Length: 340 for Atlas, 360 for Atlas Pro
Compatible Boards: Atlas, Atlas Pro.
Shock Absorption: ★★★★★
Wet Grip: ★★★★★
Dry Grip: ★★★★★★
All-Terrain: ★★★★☆
Range: ★
About Endurance
At the recommended tire pressure of 36kpa with an 180lbs (80kg) rider, expect up to a 50% reduction in range compared to Exway’s 160mm AT wheels due to the increased contact patch and rolling resistance. For daily usage, 50 PSI is ideal for range, netting about 75% the endurance of the 160mm wheels.
Venator Wheels (Fully Assembled) × 4
Quick-Release Tool × 1
Spare 1mm Spacer × 4
Spare 4mm Spacer × 4
Wheel Components
Precision Hubs (Black) × 4
Outer Precision Rims (Silver) × 4
Inner Precision Rims (Silver) × 4
165 Venator Inner Tubes × 4
165 Venator Race Tires × 4
Venator Wheels (Fully Assembled) × 4
Quick-Release Tool × 1
Spare 1mm Spacer × 4
Spare 4mm Spacer × 4
Wheel Components
Precision Hubs (Black) × 4
Outer Precision Rims (Silver) × 4
Inner Precision Rims (Silver) × 4
165 Venator Inner Tubes × 4
165 Venator Race Tires × 4
Attention
① The Venator tires require the wide version of Exway’s Precision Hubs to perform optimally.
② The Venator wheels are intended for use with Exway’s Atlas Series boards. The compatibility will vary otherwise.
③ Don protective gear during high intensity sessions. Keep from riding on open roads with other vehicles present.
④ It is recommended that Atlas users purchase 56T Precision pulleys to use Venator tires
